      楼宇智能化IFC的前端设备数据描述!

      栏目:行业动态 作者:樱桃视频污在线观看智能化 发布时间:2020-09-01 关键词: 楼宇智能化
      分享到:
      ​楼宇智能化属于电气领域,处于IFC标准中的专业领域层。在IFC4标准中定义为IfcElectricalDomain。IfcElectricalDomain支持的类型主要有IfcFlowTerminalType(终端设备类型)、IfcFlow SegmentType(终端分段类型)、IfcFlowFittingType(终端灯具类型)、IfcFlowStorageDeviceType(终端存储设备类型)、IfcFlowControllerType(终端开关类型)、IfcDistributionControlElementType(配电控制类型)和IfcEnergyConversionDeviceType(能量转换设备类型)。

      楼宇智能化属于电气领域,处于IFC标准中的专业领域层。在IFC4标准中定义为IfcElectricalDomain。IfcElectricalDomain支持的类型主要有IfcFlowTerminalType(终端设备类型)、IfcFlow SegmentType(终端分段类型)、IfcFlowFittingType(终端灯具类型)、IfcFlowStorageDeviceType(终端存储设备类型)、IfcFlowControllerType(终端开关类型)、IfcDistributionControlElementType(配电控制类型)和IfcEnergyConversionDeviceType(能量转换设备类型)。

      其中IfcFlowTerminalType定义的实体有Outlet(插座)、LightFixture(灯具)、Lamp(光源)、ElectricAppliance(电器设备)、AudioVisualApplication(音视频设备)、CommunicationsAppliance(通讯设备)。楼宇智能化中的前端设备主要有摄像机,属于音视频设备,因此可以用AudioVisualApplication来表示,下面对楼宇智能化中的前端设备进行基于IFC标准的数据描述。

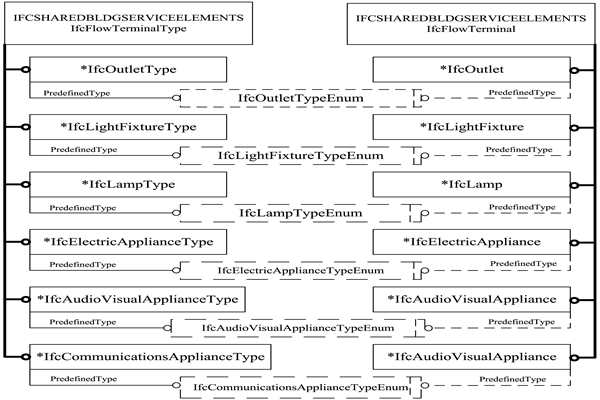

      AudioVisualApplication的Express-G图表示如图。

      楼宇智能化IFC的前端设备数据描述!(图1)

      AudioVisualApplication的Express描述如下:

      ENTITY IfcAudioVisualApplianceType

      SUBTYPE OF IfcFlowTerminalType; //IfcAudioVisualApplianceType是IfcFlowTerminalType的子类型

      PredefinedType: IfcAudioVisualApplianceTypeEnum;

      WHERE  //形式限制

      CorrectPredefinedType: (PredefinedType <>

      IfcAudioVisualApplianceTypeEnum.USERDEFINED) OR((PredefinedType=

      IfcAudioVisualApplianceTypeEnum.USERDEFINED) AND EXISTS

      (SELF\IfcElementType.ElementType));

      END_ENTITY;

      AudioVisualApplication属性间的继承关系如下:

      ENTITY IfcAudioVisualApplianceType

      ENTITY IfcRoot

      GlobalId:       IfcGloballyUniqueId;

      OwnerHistory:     OPTIONAL IfcOwnerHistory;

      Name:         OPTIONAL IfcLabel;

      Description:      OPTIONAL IfcText;//定义

      IfcRoot的四个属性

      ENTITY IfcObjectDefinition

      INVERSE //反转属性,明确定义实体之间“双向”的一对多或多对多关系

      HasAssignments:    SET OF IfcRelAssigns FOR RelatedObjects;

      Nests:        SET [0:1] OF IfcRelNests FOR RelatedObjects;

      IsNestedBy:      SET OF IfcRelNests FOR RelatingObject;

      HasContext:      SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions;

      IsDecomposedBy:    SET OF IfcRelAggregates

      FOR RelatingObject;

      Decomposes:      SET [0:1] OF IfcRelAggregates FOR RelatedObjects;

      HasAssociations:   SET OF IfcRelAssociates FOR RelatedObjects;

      ENTITY IfcTypeObject

      ApplicableOccurrence: OPTIONAL IfcIdentifier;

      HasPropertySets:   OPTIONAL SET [1:?]

      OF IfcPropertySetDefinition;

      INVERSE

      Types:        SET [0:1] OF IfcRelDefinesByType FOR RelatingType;

      ENTITY IfcTypeProduct

      RepresentationMaps:  OPTIONAL LIST [1:?]

      OF

      UNIQUE IfcRepresentationMap;

      Tag:         OPTIONAL IfcLabel;

      INVERSE

      ReferencedBy:     SET OF IfcRelAssignsTo Product FOR RelatingProduct;

      ENTITY IfcElementType

      ElementType:     OPTIONAL IfcLabel;

      ENTITY IfcDistributionElementType

      ENTITY IfcDistributionFlowElementType

      ENTITY IfcFlowTerminalType

      ENTITY IfcAudioVisualApplianceType

      PredefinedType:    IfcAudioVisualAppliance TypeEnum;

      END_ENTITY;
